Tamworth Regional Council Bicentennial Park And Regional Playground Precinct - Groundwater Irrigation System

Details

Client: Tamworth Regional Council

Date: 2018/19

Location: Tamworth NSW

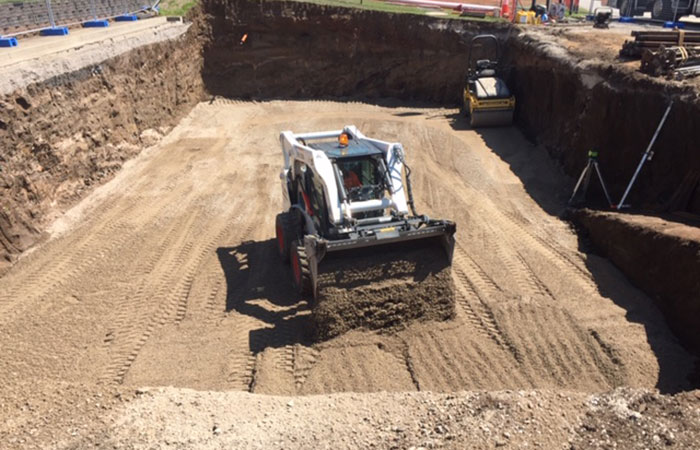

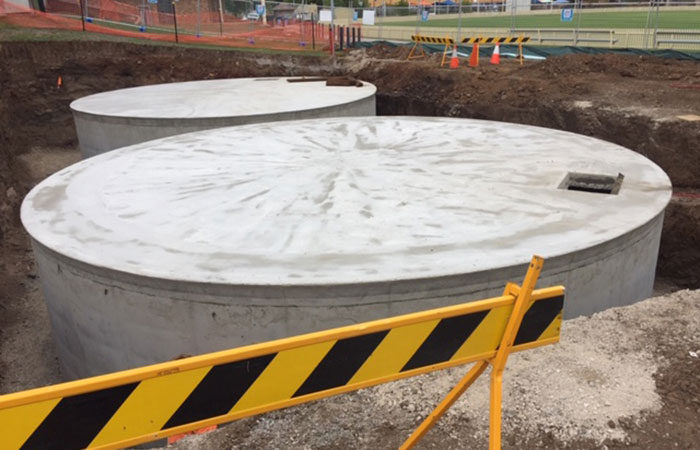

Grundfos borehole submersible pump. Supplying 6 litres per second through a 160mm poly mainline to 2 x underground concrete storage tanks - totalling 240,000 litres and installed with a new car park over the top.

Grundfos submersible pump station inside tank supplying 20 litres per second for existing irrigation system via a new 160mm poly mainline.

The objective of the project is to integrate the existing irrigation network into a groundwater supply system, utilising onsite bore and sprinkler arrangement. The project involved design, supply, construct and commission a system to use groundwater throughout the playing fields and recreational areas - saving the use of treated town water.
